Back Pressure Regulator

The Binks low shear back pressure regulators adjust to control the paint system back pressure within the pipe line and minimizes paint shear due to the large surface area of the valve seating. When the paint flow fluctuates the air pressure acting on the diaphragm automatically increases or decreases the forces acting on the paint flow, thus maintaining the set paint system pressure level.

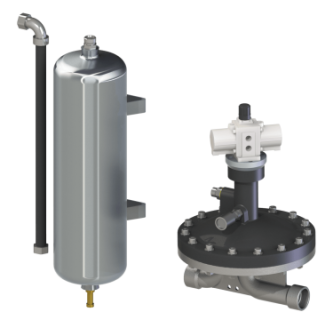

Binks Active Surge Chamber:

The unit consists of a lower fluid and upper air chamber separated by a flexible molded composite diaphragm.  The air chamber is supplied with compressed air via an air intensifier; the pressure maintains an equal pressure with the fluid pressure.  The upper air chamber is extended to increase its volume with the use of an air reservoir. The lower fluid chamber allows the material to flow through and thus allowing easy flushability.
